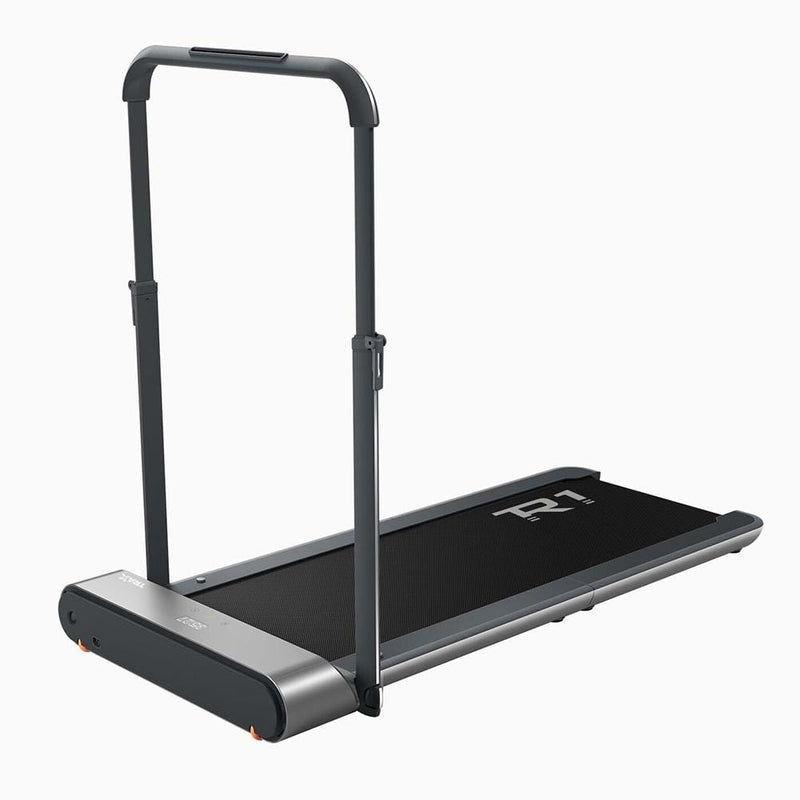

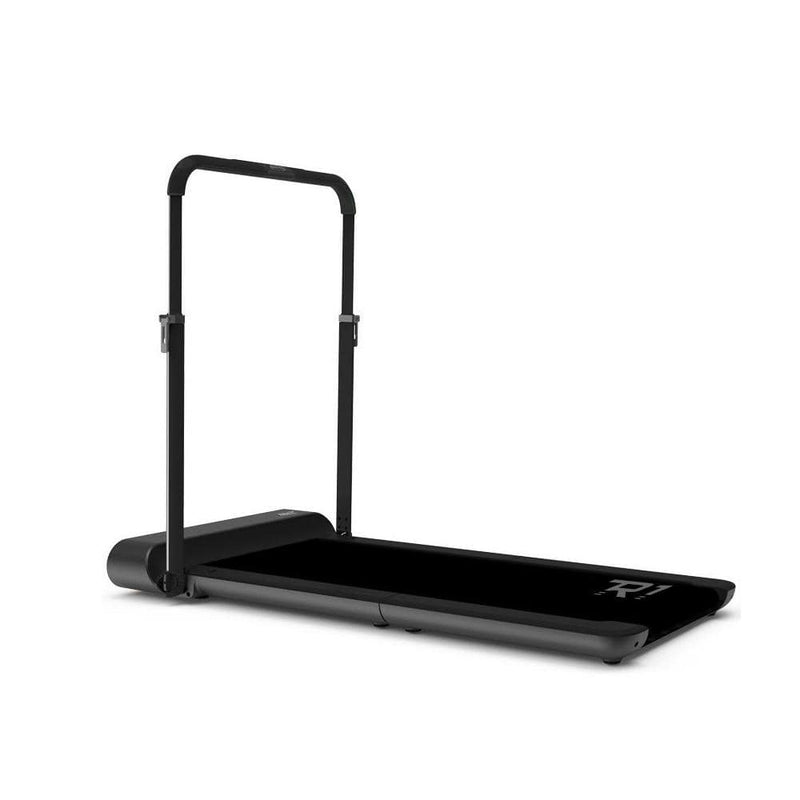

Introducing Trax R1 Super Space Saver Treadmill.

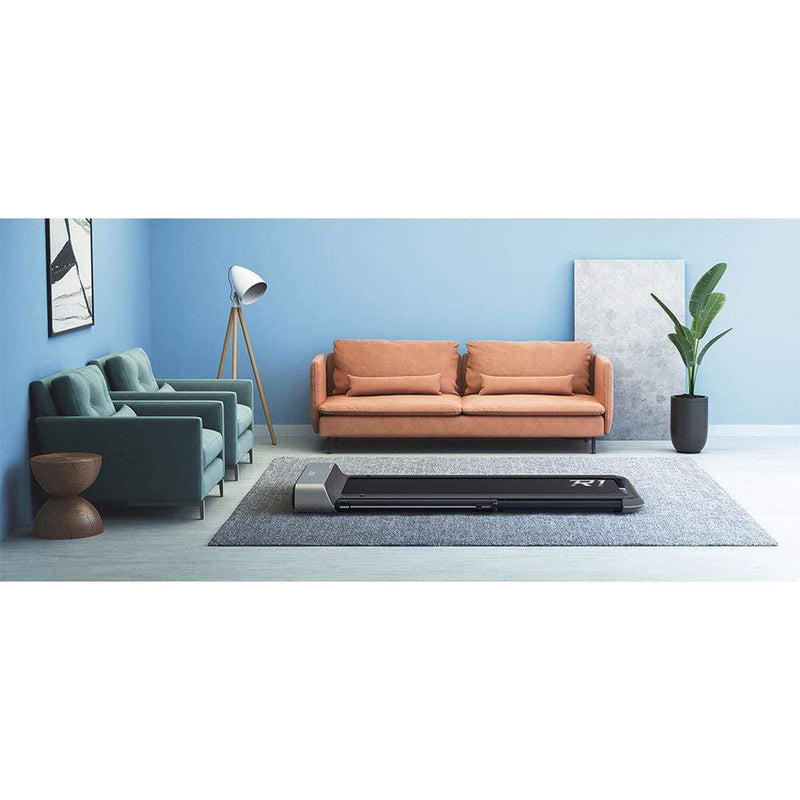

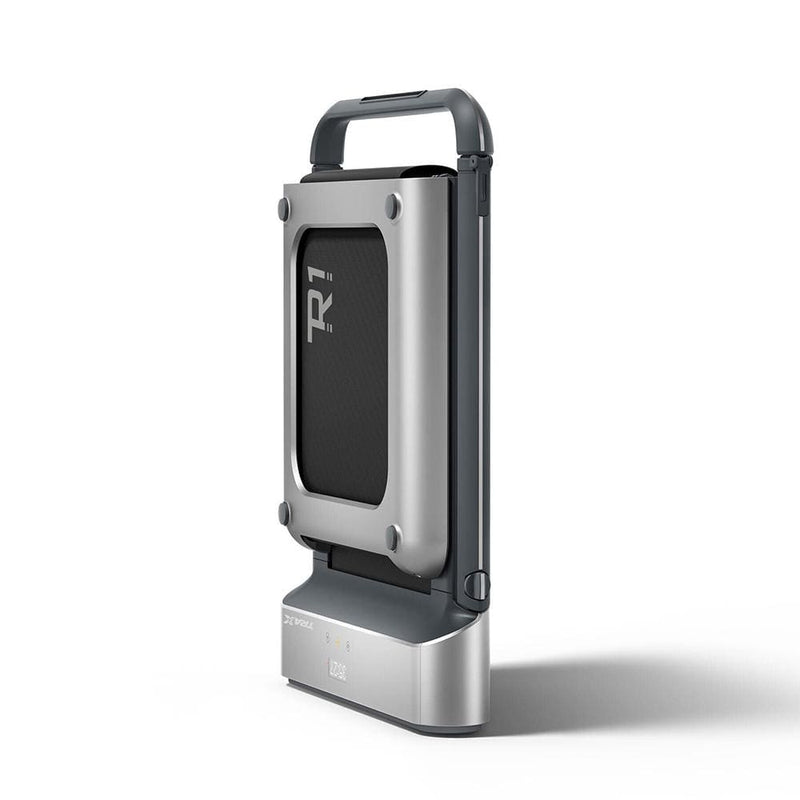

Your ultimate space saver solution, the Trax R1 treadmill has a unique double fold technology that allows the treadmill to be folded in half, creating a more reduced storage space compared to an average treadmill. It features 2 speed modes - Manual and Automatic mode - so you can increase or decrease its speed via a remote control or via its intelligent treadmill sensor. Easy to move like a luggage, the Trax R1 can be stored upright in a narrow space at home - saving more room for other things.

Patented Double Fold technology that provides more storage possibilities
Monitor your time, speed, distance, and steps through its high brightness light emitting LED panel
Speed range: 0.5-10km/h

Automatic mode (Folded handrail): 0.5 - 6 km/h (3 km/h speed is fixed on the 1st kilometer but will gradually increase until it reaches the maximum speed of 6 km/h when it exceeds the 1 kilometer distance)
Manual mode (Unfolded Handrail): 0.5-10km/h

Max User Weight: 110 kg
N.W./G.W.: 33 kg/38 kg

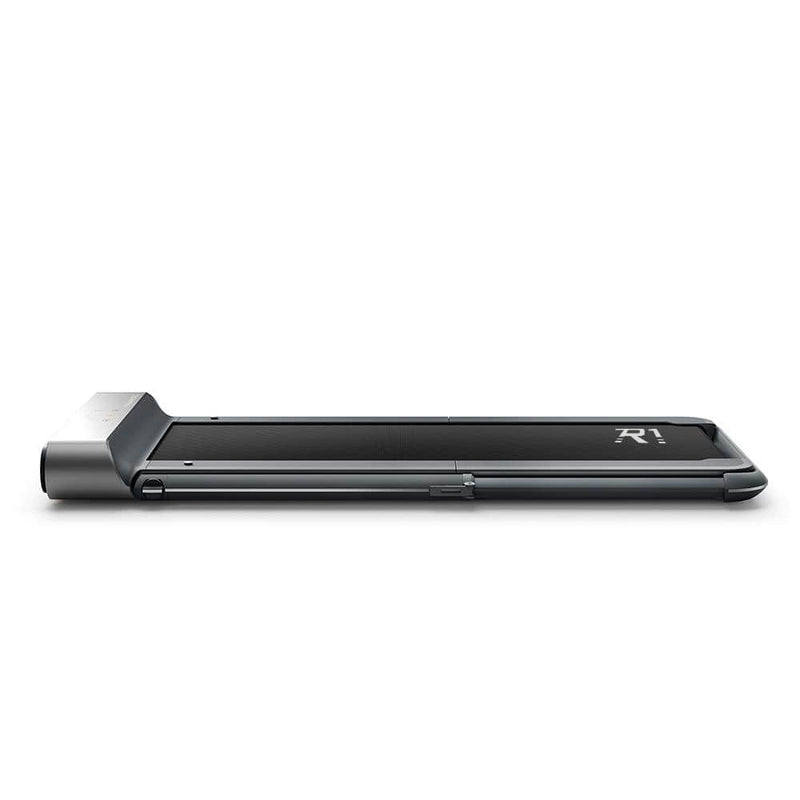

Unfolded Size: 1460 mm x 720 mm x 900 mm

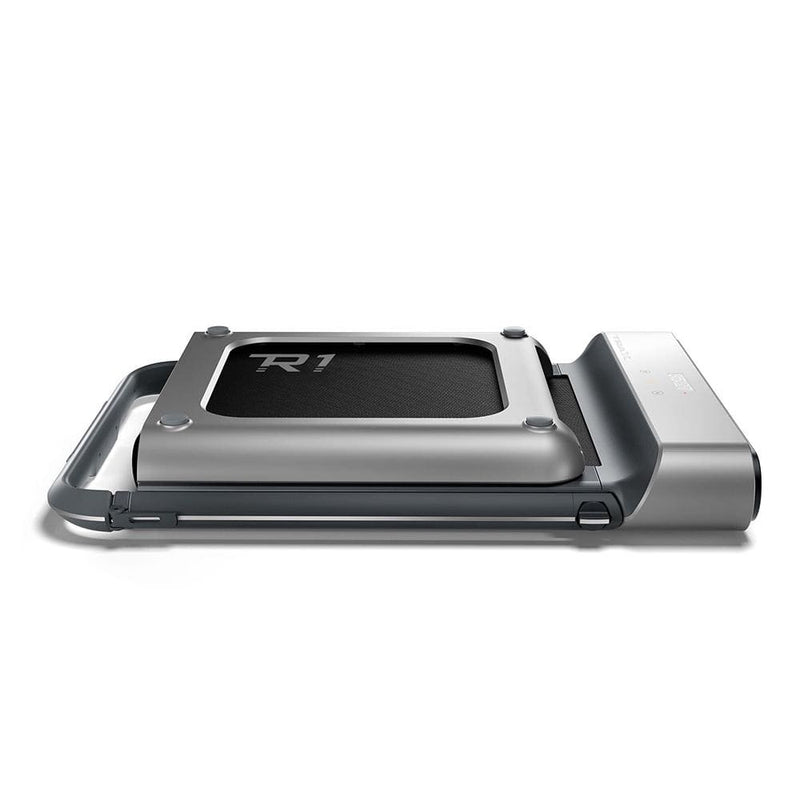

Folded size: 980 mm x 720 mm x 155 mm
Zero Assembly
Running Area: 440 mm x 1200 mm
Voltage: 220-240V
Power input: 918 W

A minimal fee is charged for a repair service at home. An item for repair that's brought to the store or service center within its warranty period is free of charge.

Inclusions from the Movement Studio:

3-months All You Can Train SweatHome XStream Moves
At TMS, they make sustainable fitness a priority even while at home. With their SweatHome XStream workouts that make use of our bodies' fundamental functional movements—namely push pull, hinge, lunge, and twist— they combine strength training and cardio to help you burn fat, build muscle, and develop athleticism. TMS is here for you every step of the way, to motivate you to become your best self.

At SweatHome XStream, they guide you through pre-recorded video tutorials, pump you up with the sickest beats, and keep your workouts in check with an in-view timer—all while Movement Coaches watch your every move. At the SweatHome, our sole focus is YOU.

Access to SweatHome XStream Burnout Recordings
SweatHome XStream Burnout is TMS' 45-minute cardio-based high intensity interval and endurance training, where you can choose to use your body weight, treadmill, rower, or stationary bike. Its goal is to let you burn maximum calories efficiently, while pushing your body out of its comfort zone.

TMS Tread Offline Classes
Every chance we get we run!

Follow cues as TMS guides you on your walks, jogs, runs, and sprints. Spirits are high, and hearts will be racing as you move through heart-pumping music that will keep you hyped up and wanting more. We'll meet you on the tread, fam!

10% Off on TMS Private Class
Get an exclusive 10% discount from TMS' Private Class, where you can schedule a workout and invite your friends and family to join in the fun!

Exclusive TMS Merchandise

[#header1] Warranty [/header1][#content1]

Full Warranty (w/AVR)
3 years frame, 1 year electronics, 1 year motor, 1 year service, 3 months consumable parts

Limited Warranty (w/o AVR)
3 years frame, 6 months electronics, 6 months motor, 1 year service, 3 months consumable parts

The following are NOT COVERED BY THE WARRANTY:

Repairs or attempted repairs and modifications by anyone not authorized by CHRIS SPORTS.
Serial numbers' label has been defaced, modified, or removed.
Damages caused by accidents, abuse, misuse, neglect, or failure to follow instructions contained in the Owner’s manual.
Damages caused by water, fire, flood, getting hit by other objects, and other fortuitous events.
Damages caused by pets, pests, cockroaches, rats, and other rodents including insect infestations.
Damages caused by accidental plugging of wrong voltage not conforming to the unit’s requirement.
Damages caused by power surge and lightning charges.
Unit is exposed in outdoors (garage, pool area, patio, etc.), making it exposed to sun, rain, dust, and moisture.
Improper use of lubricants. Only “silicon oil” should be used in lubricating the matting.
Damages occurred during shipment (claims must be presented to shipper).
Home service fee, repair service fee, and travel expenses for field service.
Removal and installation charges are not covered.

TREADMILL MAINTENANCE TIPS

Always use an Automatic Voltage Regulator (AVR). Electric surge is a common cause of motor failure. An AVR will help protect your treadmill motor from electrical surge. It is recommended that a treadmill with 20HP motor uses a 3000 volts voltage regulator. Whether your treadmill is 110V or 220V, an AVR is a must to prolong the life of your motor.
Keep the treadmill clean and free of dust. Dirt is the number one cause of premature belt failure. Weekly dusting between the belt and deck will ensure longevity of the machine. Deck should be dry and free of debris. Make sure the area where you place your treadmill is free of dust.
Make sure the treadmill belt is tight. Most treadmills provide the user with easy access to belt tracking. Treadmill belts may stretch slightly on the initial use and may need tightening. Use the allen wrench supplied with your treadmill, or use another of the right size and tighten both belt adjustment screws clockwise. ¼ turn clockwise should tighten the treadmill belt if it has loosened from breaking-in. Belt adjustment screws are usually located at the rear of the treadmill. Some belts require looser running than others, so check the user’s guide before making adjustments. Belt should be running at a low speed (around 3 mph) when adjusting belt tracking.
Make sure the treadmill belt is properly aligned. The tracking adjustments are also for proper belt alignment, so be sure not to turn either side more than ¼ turn at a time since belt tracking adjustments are minor. Improper belt tracking may result in roller knocking. A knocking noise may indicate a defective roller; however, it is usually a result of the belt placing too much force on the roller from side to side. In this case, the knocking noises will be at a much slower rhythm than roller rotation. Proper tracking reduces the load on belt guides and ensures that the front and rear rollers are parallel. Follow the manufacturer’s directions on belt tracking to keep from misaligning or over stretching the belt. Be careful not to overtighten the belt when adjusting alignment.
Make sure the treadmill is leveled with the floor. Squeaking sounds and belt mistracking are most often the result of unleveled floor. Treadmills usually have level adjustment in rear supports. If your treadmill cannot be leveled with the floor, then level the floor with your treadmill.
Keep the power cord free and clear from the treadmill. Make sure the power cord is clear of the incline mechanism.
Keep the belt and the deck dry. Unless recommended by the manufacturer, avoid use of silicone or oil to lubricate the belt. A clean, dry, and dust-free bed and belt combination is ideal for a long-lasting treadmill. Some units may require silicone spray for belt lubrication. Follow manufacturer’s directions closely for the application schedule and type of lubricant. Some treadmill decks may require initial waxing to help reduce friction with the belt. Do not wax a deck unless recommended by the manufacturer. Lubrication to pretreated wax decks may gum up the wax.
Ensure low friction between the deck and the belt. You want a low-friction contact between the deck and the belt to begin with. A high friction between the deck and the belt will result in damage to the motor electronics. High friction belts will not coast when power is shut off, nor will they be easy to dead-walk on when the power is off. High friction belts can also cause the motor to stall. Again, be sure to follow your treadmill manufacturer’s guidelines for proper deck and belt maintenance. Unnecessary lubrication can lead to excessive amp draw and subsequent damages to motor electronics.
Safeguard against console crashes by grounding to an AC wall outlet. Treadmills with computer console (such as those with programming) are subject to crashes. A computer crash is anything that may occur out of the ordinary, such as a display blanking out, locking up, or not recording information, or the treadmill simply shutting down altogether. To determine if a crash is not due to a defect, just turn the treadmill power off and then on again. Power cycling on and off will reset computers most of the time. Computer defects will result in loss of control to incline and speed, and the treadmill may not even start at all. To help ensure against crashes, plug the treadmill into a grounded AC outlet. If your treadmill computer console experiences repeated or frequent crashes, then it may need to be replaced.
Read your treadmill owner’s manual. A read through of the treadmill owner’s manual may save you from costly repairs. All maintenance procedures should be listed in the owner’s manual along with troubleshooting guidelines, parts listings, and instructions on repairs. Damage to your treadmill from improper use or unauthorized tampering can result in the manufacturer voiding the warranty. If in doubt about proper handling of your treadmill, contact either your dealer or the manufacturer for recommended care.

[#header2] About the Brand [/header2][#content2]

Trax carries a wide selection of home gym equipment such as treadmills, exercise bikes, elliptical trainers, as well as strength training equipment.

[/content2]
